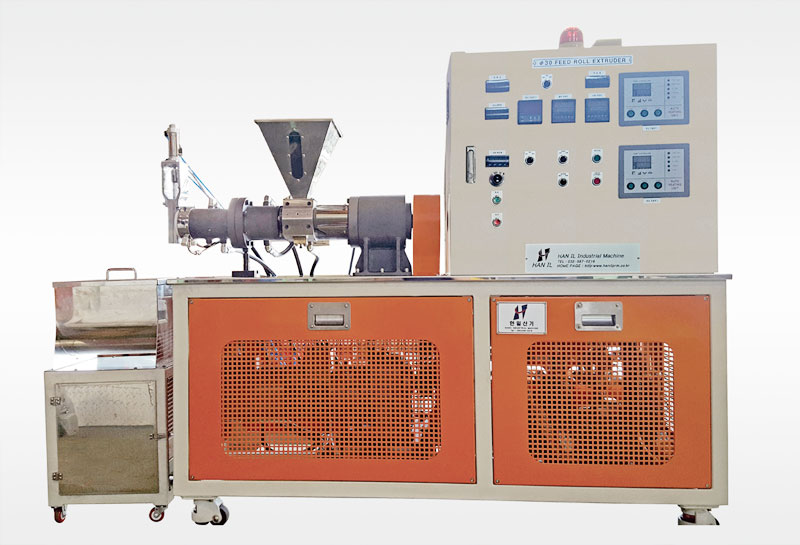

Feed Rudder Extruder

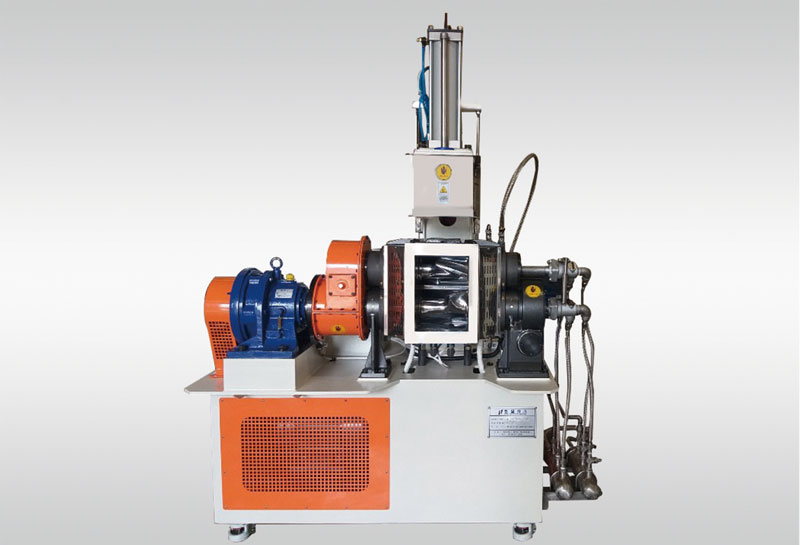

3L&5L Dispersion Kneader

Feed Rudder Extruder Specification

Model HFE-32 HFE-42 HFE-52
Screw Dia Meter(m/m) 32 42 52
Screw Length(L/D) 8 10 10
Driving Speed(Max)
 60-90 60-90 60-90
Main Motor Capacity(KW)
 5.5 7.5 10
Temperature Control Zone
 2 2 2


Twin Kneader Specification

Model HFE-22 HFE-32 HFE-38
Screw Dia Meter(m/m) 22 32 38
Screw Length(L/D) 20-34 20-24 20-24
Driving Speed(Max)
 90-120 90-120 90-120
Main Motor Capacity(KW)
 3.7 5.5 10
Temperature Control Zone
 2 2 2
